Exchange server disasters can happen despite all the precautionary measures taken by the administrators. Fortunately, there are many professional Exchange recovery tools that help in dealing with such situations. Still, many experienced administrators keep regular backups so that everything can be recovered after Exchange crashes. This two-part article shows you how to use the backup feature of Windows Server to backup and restore Exchange data.

  1. Backup Exchange data using Windows Server Backup (Part I)
  2. Recover Exchange data from Windows Server backups (Part II)

Recover Exchange data from Windows Server Backups

You are lucky if you have Exchange backups to rely on after Exchange crashes. Here, we will show you how Exchange data can be recovered from Windows Server backups. However, any changes post backup would not be recovered. Here are the steps to be followed for the recovery:

  1. Start Windows Server Backup and choose Local Backup.

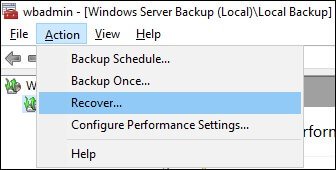

  2. Click Recover in the Actions pane. The Recovery Wizard opens up.
    Exchange backup recovery

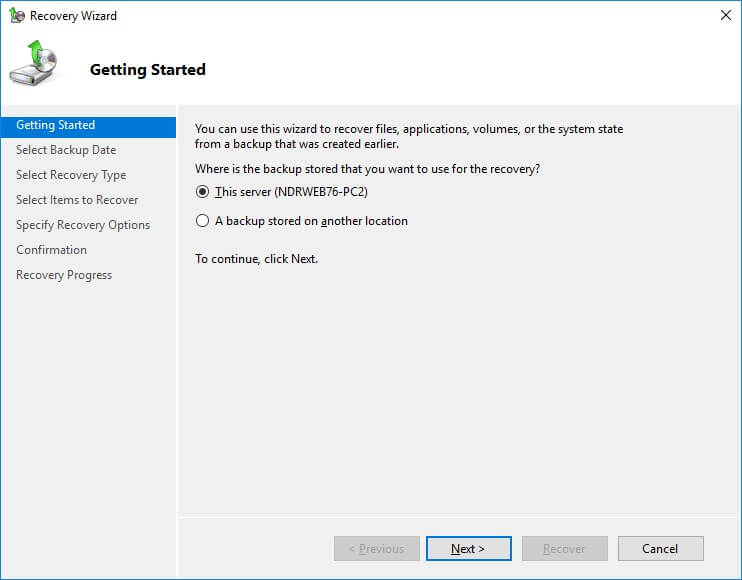

  3. On the Getting Started page:
    • If the backup is on a local server, then select This Server (Server Name) and click Next.
    • If the backup is on another computer, then select Another server, and click Next. On the Specify Location page, select Local drives or Remote shared folder, and click Next.

    For local drives, select the drive and back location; for remote shared folder, provide UNC path (on Specify remote folder page); click Next.
    Recover Exchange backup using Windows Server backup application

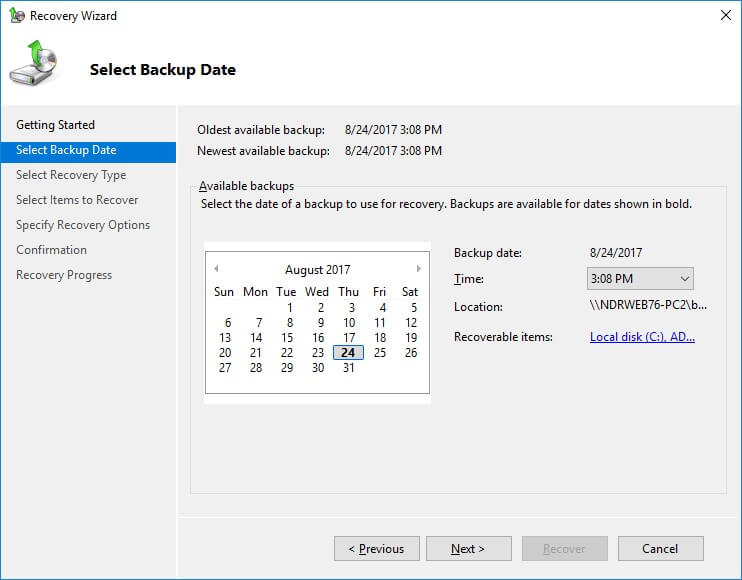

  4. On the Select Backup Date page, select the time and date of the backup and click Next.
    Select the Exchange backup for recovery

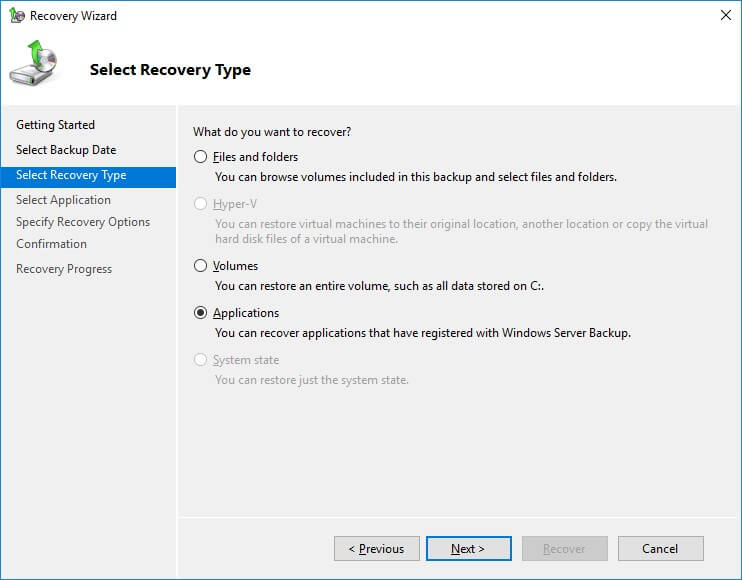

  5. On the Select Recovery Type page, select Applications and click Next.
    Recover Exchange application from backups

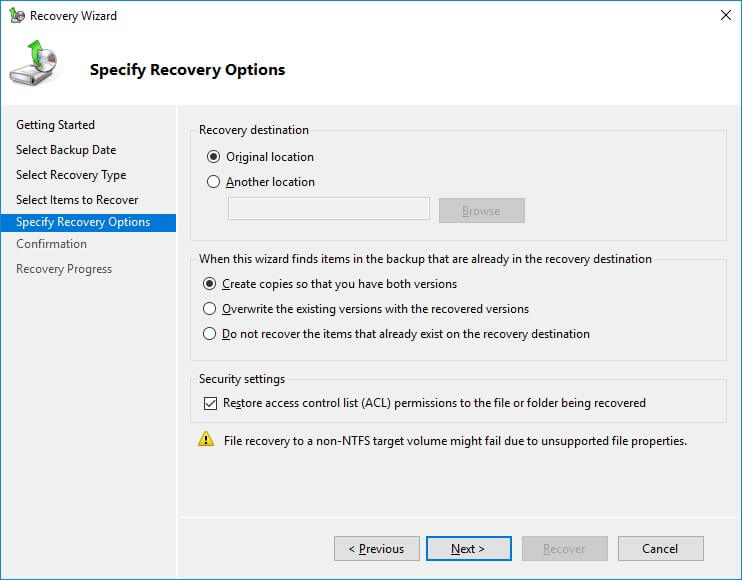

  6. On the Specify Recovery Options page, specify the location where you want to recover the data, it would be either Recover to Original location or Recover to another location.
    Recover exchange data to original location
  7. Now, on the Confirmation page, check the recovery settings and click Recover. You can view the status of recovery on Recovery Progress page and click Close once the recovery operation is complete.

Windows Server Backup saves the backup in VHDX format (for Windows Server 2012 and newer versions) and has a size limitation of up to 2 TB. It is sizeable enough for smaller businesses, but if you are a large organization, it will remain shorter for your backup requirements. There is another limitation with Windows Server Backup, which controls the automatic disk space management wizard. It automatically deletes older backup files when it finds no space for the new file. To overcome such limitations, you should use professional Exchange Backup software. Kernel Exchange Backup & Restore software can take an unlimited backup of all exchange mailboxes and saves the resultant backup file at the desired location.
