Ensuring the stability of virtual machines is paramount for the preservation of VHD files. Neglecting early signs of virtual machine failure could lead to the irreversible loss of critical VHD files. One frequently encountered issue is the virtual machine entering a paused state, necessitating prompt intervention to avert potentially disastrous consequences. In this blog, we delve into the underlying causes of this paused state in virtual machines and provide effective remedies.

About “Paused Sate” of Virtual Machines

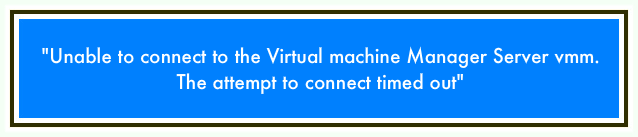

After installing the Hyper-V role on the operating system (Windows Server 2008/2008 R2), users may encounter an error when attempting to create virtual machines or store virtual hard disk files on the local hard drive. This error can also manifest when multiple snapshots of a virtual machine have already been taken, and an additional attempt to add more snapshots is made. The error message resembles the following:

The error somewhat looks like this

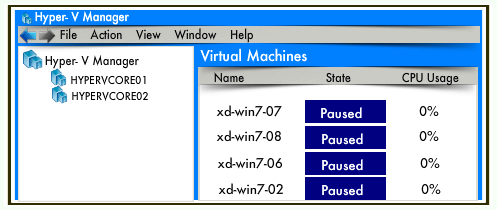

To verify the error, when user opens the Hyper-V Manager then the following state appears:

user opens the Hyper-V Manager then the following state appears

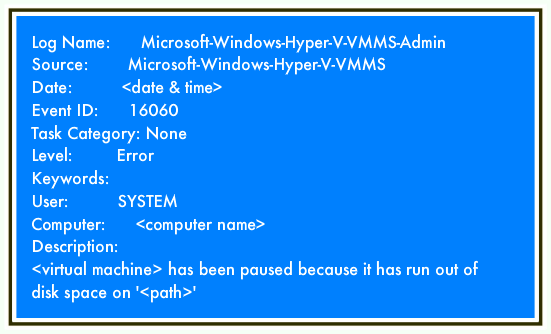

Along with the above error an event regarding it is added in MS-Windows-Hyper-V-VMMS-Admin log, like mentioned below:

 added in MS-Windows-Hyper-V-VMMS-Admin log

Reason behind “Paused Sate” of Virtual Machines

When the Cluster Shared Volume on which the Virtual Machines are configured runs out of space, it leads a paused state.

Remedies for the “Paused Sate” of Virtual Machines

The primary solution to address this issue is to free up disk space on the virtual hard drives. Additionally, consider relocating the VHD files to an alternative location as a potential workaround.

NOTES: Before moving the VHD files to another location, user must consider these following points:

  • User must possess files and folder accessing power or permission to move the VHD files
  • User must relocate the VHD files and other files related to VMs at one place for better management
  • User must check the relationship status of the virtual hard disk before dismounting the VHD files.
  • User must check the storage properties of the virtual hard disk to ensure whether the virtual hard disk data has been stored in VSV files (in saved state) or VHD files format
  • User must possess appropriate license of the operating systems and applications used over the virtual machine
  • User should not copy and move any VHD file when it is in open state via a virtual machine
  • User should not dismount the VHD file associated with the domain controlling virtual machines
  • Upon dismounting the VHD files, user must update the general virtual machine properties and change location information of the virtual hard disk
  • User must merge the undo disk or differencing disk before commencing relocation of VHD files, if the undo disk feature is on

In case there are other issues related to VHD files or if they have become inaccessible, then try Kernel for VHD Recovery tool to fix those issues and access your VHD files easily.
